Key Technical Specifications
Power (kW) |
Pressure (MPa) |
Flow Rate (L/min) |
Cooling Method |
Tank Capacity (L) |
Control Voltage (V) |
5.5–55 |
0–25 |
15–250 |
Air-cooled / Oil-cooled |
150–1000 |
24V / 220V |
Major Component Brands:
Motor |
Siemens / ABB / High-quality domestic brands |
Hydraulic Pump |
Rexroth / Danfoss / Parker / High-quality domestic brands |
Hydraulic Valves |
Rexroth / Danfoss / Parker / High-quality domestic brands |
Cooling System |
High-quality domestic brands |
Filters & Accessories |
HYDAC / LIMING |
Electrical Control |
Siemens / Schneider |
Application Scope

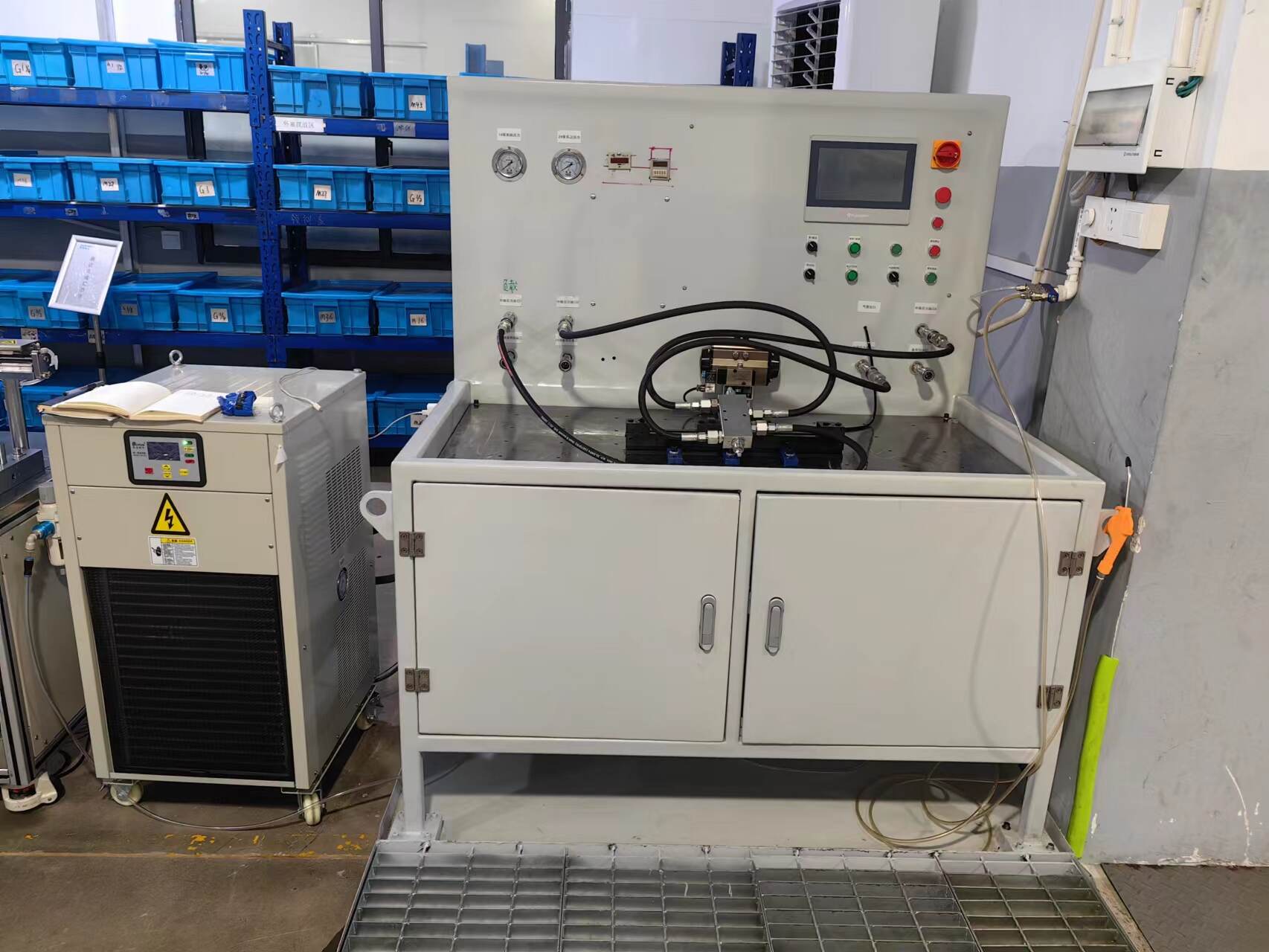

This test stand is specifically designed for performance testing, fault diagnosis, and maintenance evaluation of various hydraulic directional control valves. It is compatible with solenoid-operated, manual, and proportional directional valves, making it ideal for use by hydraulic valve manufacturers, service and repair providers, laboratories, and quality inspection agencies.
Technical Highlights and Advantages
Fast Switching Between Valve Types: Modular valve block design allows for quick adaptation to various valve types and port sizes, significantly improving testing efficiency.
Real-Time Digital Monitoring and Recording: All key parameters are digitally monitored and recorded in real time, with data exportable to Excel format for quality traceability and comparative analysis.
Full Working Condition Simulation: The system can simulate dynamic changes in pressure, flow rate, and oil temperature to accommodate factory acceptance tests, high-pressure conditions, low-temperature environments, and other operational scenarios.
Proportional Valve and Signal Testing Capability: Optional signal generator or D/A modules allow testing of proportional control characteristics, response time, and operational stability.
Expandable for Remote Monitoring and Control: Built-in network interfaces allow for future integration with MES platforms or test data management systems, enabling centralized remote supervision.
Compact Structure and Easy Maintenance: Thoughtful layout design with industrial casters for mobility and easy maintenance. Customization available for laboratory-type or factory-type configurations.
